Efficient

• Maximum efficiency of 98.4%

Safe

• DC surge arrester (SPD type II) can be integrated


Flexible

• DC input voltage of up to 1000 V
• Multistring capability for optimum system design
• Optional display

Innovative

• Cutting-edge grid management func-tions with Integrated Plant Control
• Reactive power available 24/7 (Q on Demond 24/7)

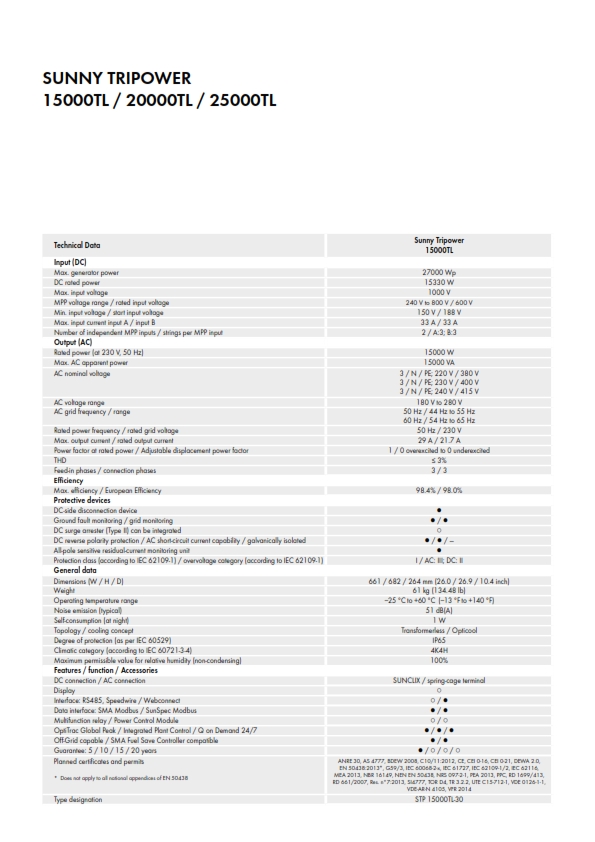

SPESIFIKASI

Input ( DC )

Max. Generator power  : 27000 Wp

DC rated power  : 15330 W

Max. Input voltage  : 1000 V

MPP voltage / rated input voltage  : 240 V to 800 V / 600 V

Min. Input voltage / start input voltage  : 150 V / 188 V

Max. Input current input A / input B   : 33 A / 33 A

Number of independent MPP inputs / strings per MPP input    : 2 / A:3; B:3

Output ( AC )

Rated power ( at 230 V, 50 Hz )   : 15000 W

Max. AC apparent power   : 15000 VA

Ac nominal voltage  : 3 / N / PE; 220 V / 380 V, 3 / N / PE; 230 V / 400 V , 3 / N / PE; 240 V / 415 V

AC voltage range : 180 V to 280 V

AC grid frequency / range   : 50 Hz / 44 Hz to 55 Hz

                                                  : 60 Hz / 54 Hz to 65 Hz

Rated power frequency / rated grid voltage  : 50 Hz / 230 V

Max.output current / rated output current   : 29 A / 21.7 A

Power factor at rated power / adjustable displacement power factor     : 1 / 0 overexcited to 0 underexcited

THD   : ≤ 3%

Feed-in phases / connection phases   : 3 / 3

Efficiency

Max.efficiency / European efficiency  : 98.4% / 98.0%

Protective devices

DC-side disconnection device    : •

Ground fault monitoring / grid monitoring       : • / •

DC surge arrester (Type II ) can be integrated   : º

DC reverse polarity protection / AC short-circuit current capability / galvanically isolated    : • / • / -

All-pole sensitive residual-current monitoring unit  :  •

Protection class (according to IEC 62109-1 ) / overvoltage category (according to IEC 62109-1 )    : I / AC: III; DC:II



General data

Dimensions (W / H / D )  : 661 / 682 / 264 mm (26.0 / 26.9 / 10.4 inch)

Weight   : 61 kg (134.48Ib )

Operating temperature range   : -25°Cto+60°C (-13°F to +140 °F )

Noise emission (typical) : 51 dB (A)

Self-comsumption (at night)  : 1 W

Topology / cooling concept  : Transformerless / Opticool

Degree of protection (as per IEC 60529 )   : IP65

Climatic category (according to IEC 60721-3-4)  : 4K4H

Maximum permissible value for relative humidity (non-condensing)  : 100%

Features / function / Accesories

DC connection / AC connection   : SUNCLIX / spring-cage terminal
