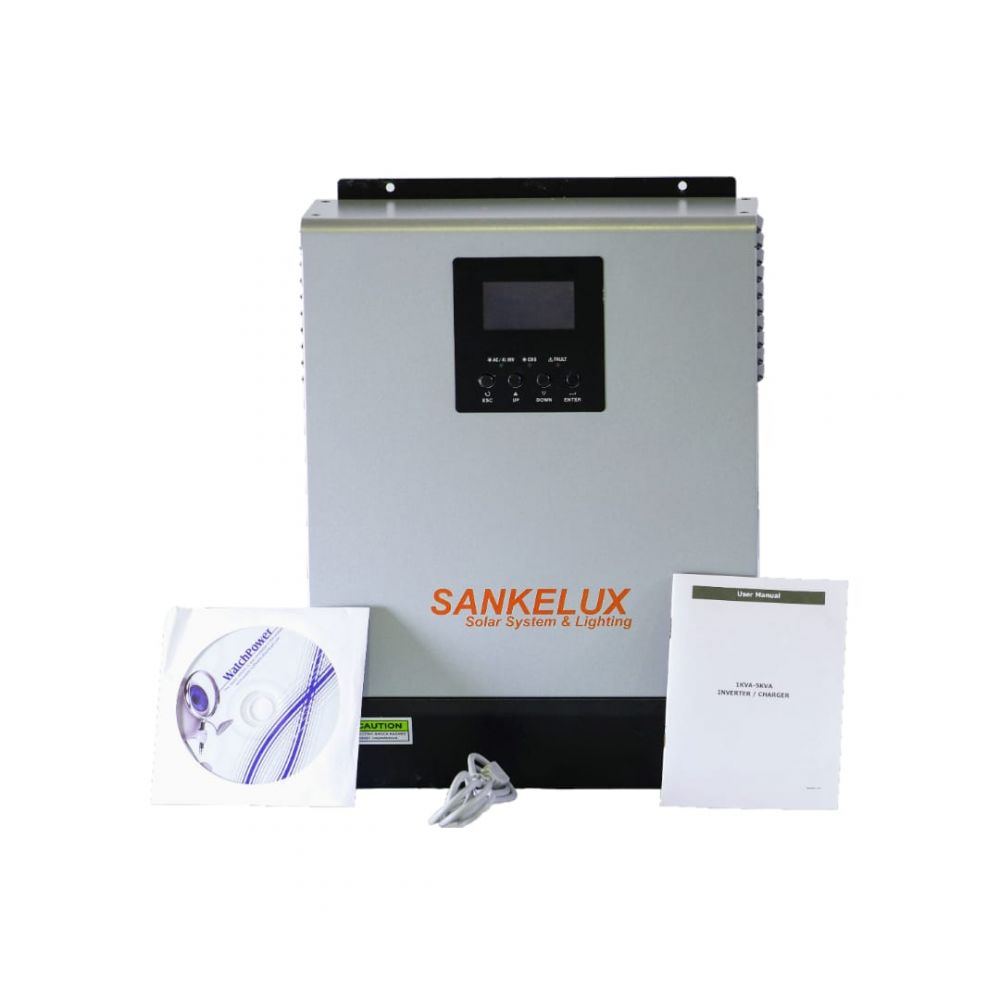

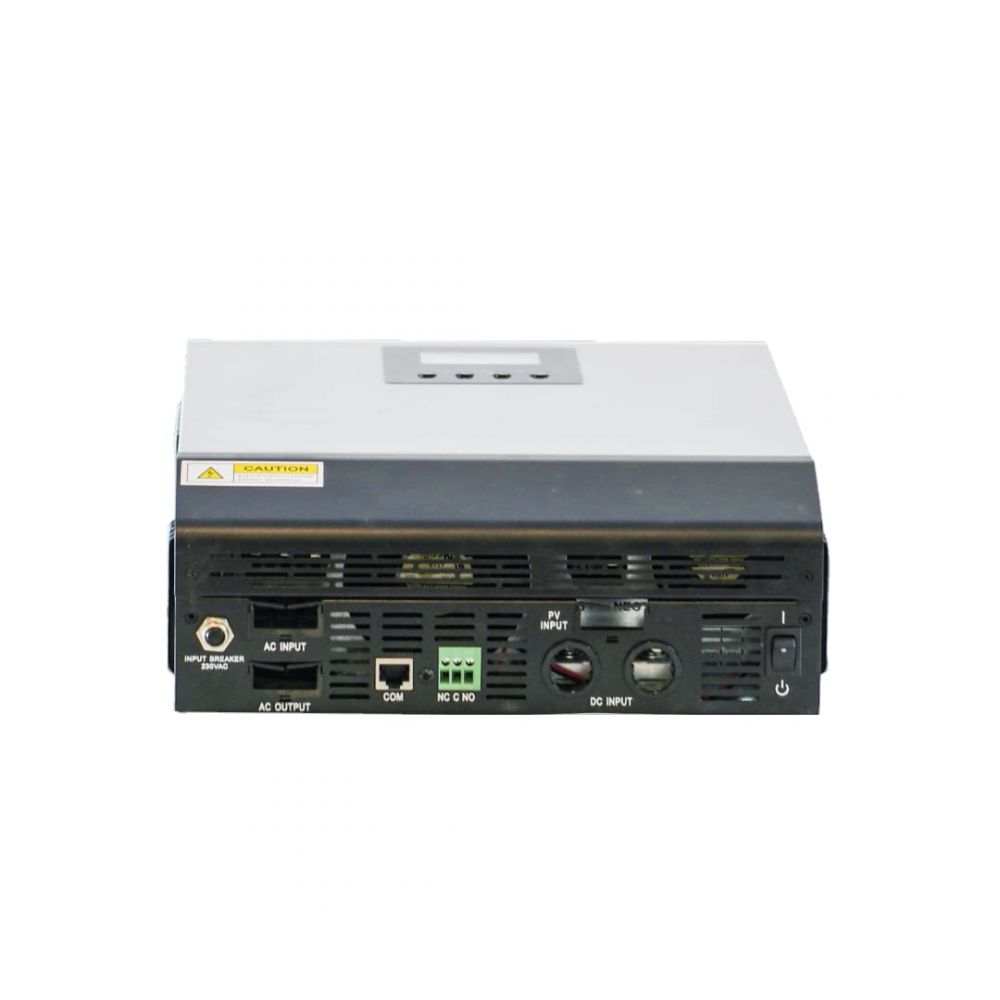

INVERTER SANKELUX HYPO UPS 2 KVA ( 1.600 W )
Rangkaian elektronika daya yang di gunakan untuk mengkonversikan tegangan searah (DC) kesuatu tegangan bolak balik (AC)

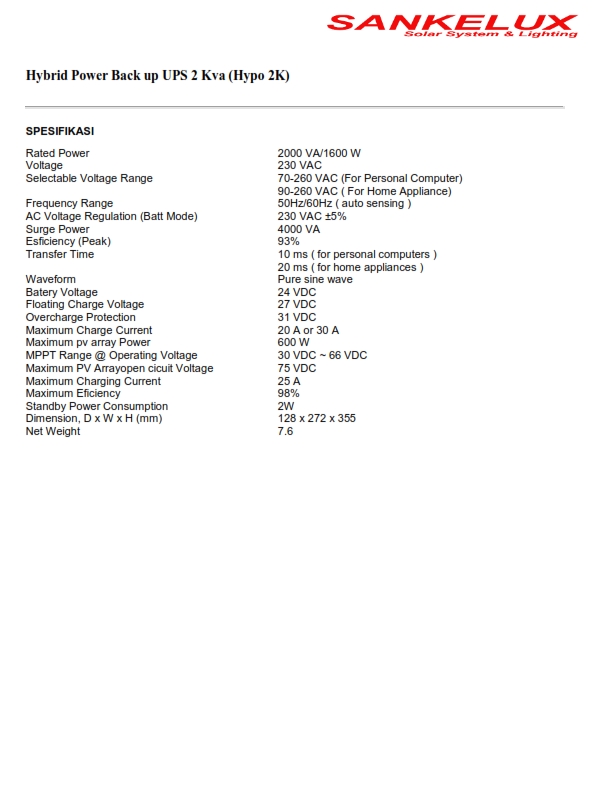

SPESIFIKASI
Rated Power 000 VA/1600 W
Voltage 230 VAC
Selectable Voltage Range 170-260 VAC (For Personal Computer)
90-260 VAC ( For Home Appliance)
Frequency Range 50Hz/60Hz ( auto sensing )
AC Voltage Regulation (Batt Mode) 230 VAC ±5%
Surge Power 4000 VA
Esficiency (Peak) 93%
Transfer Time 10 ms ( for personal computers )
20 ms ( for home appliances )
Waveform Pure sine wave
Batery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 31 VDC
Maximum Charge Current 20 A or 30 A
Maximum pv array Power 600 W
MPPT Range @ Operating Voltage 30 VDC ~ 66 VDC
Maximum PV Arrayopen cicuit Voltage 75 VDC
Maximum Charging Current 25 A
Maximum Eficiency 98%
Standby Power Consumption 2W
Dimension, D x W x H (mm) 128 x 272 x 355
Net Weight 7.6
